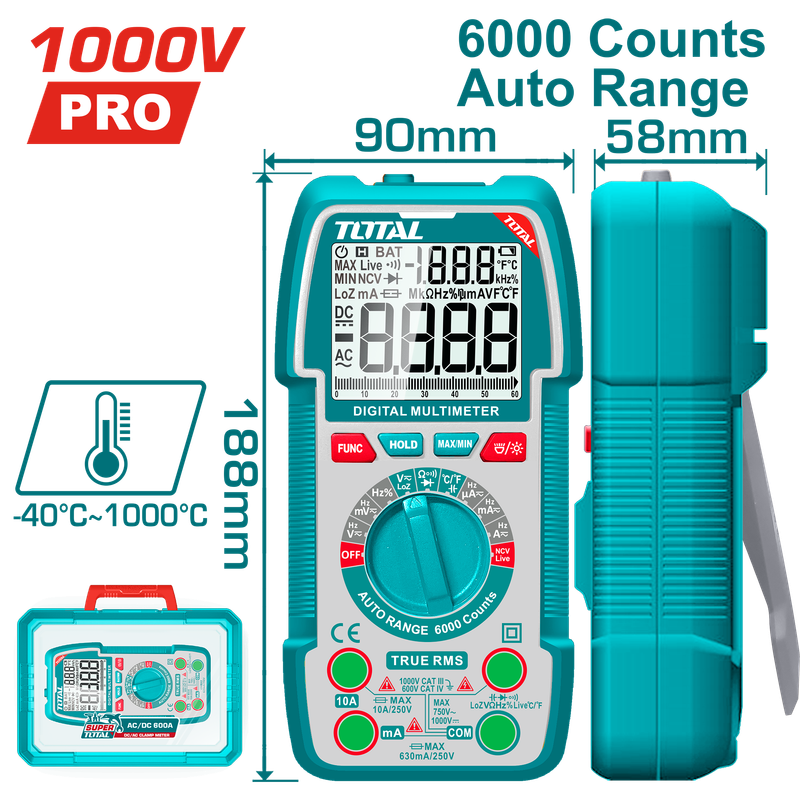

TOTAL Digital Multimeter TRMS 6000 Counts, Auto Range, NCV, High Voltage Alert-TMT5310004

TOTAL Digital Multimeter TRMS 6000 Counts, Auto Range, NCV, High Voltage Alert-TMT5310004

The TOTAL Digital Multimeter (TMT5310004) is a high-performance diagnostic tool designed for accurate and safe electrical measurements. Featuring a 6000-count True RMS (TRMS) display with auto-ranging capability, it delivers reliable readings for a wide range of electrical applications.

This multimeter supports AC/DC current and voltage measurement along with resistance, capacitance, frequency, duty cycle, and temperature functions. It also includes advanced safety and diagnostic features such as Non-Contact Voltage (NCV) detection and live/neutral line identification.

Designed for professional use, it offers LowZ mode, phase testing, continuity and diode testing, plus a high-voltage warning prompt for enhanced user safety. Additional conveniences such as backlight display, flashlight, data hold, and input LED indication make it suitable for field and workshop environments.

Key Features

• True RMS 6000 Counts: Accurate and stable measurement
• Auto Range Function: Easy and efficient operation
• Wide Measurement Range: Current, voltage, resistance, capacitance, frequency, duty cycle, and temperature
• NCV Detection: Non-contact voltage detection for safety
• Live/Neutral Line Identification: Faster troubleshooting
• High Voltage Warning: Alerts for dangerous voltage levels
• Advanced Testing Functions: LowZ, phase function, continuity and diode test
• User-Friendly Design: Backlight, flashlight, data hold, and LED input indicators
• Portable & Durable: Ideal for professional electricians and technicians

Specifications

• Brand: TOTAL
• Model: TMT5310004
• Product Type: Digital Multimeter

Display:

• 6000 Counts True RMS
• Auto Range

Current Measurement:

• DC/AC Current: 6000µA / 60mA / 600mA / 10A

Voltage Measurement:

• DC Voltage: 600mV / 6V / 60V / 600V / 1000V
• AC Voltage: 600mV / 6V / 60V / 600V / 750V

Resistance:

• 600? / 6k? / 60k? / 600k? / 6M? / 60M?

Capacitance:

• 10nF / 100nF / 1000nF / 10µF / 1000µF / 10mF / 100mF

Frequency:

• 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz

Duty Cycle:

• 1% – 95% (±3.0% +3)

Temperature:

• -40.0°C to 1000.0°C
• -40.0°F to 1832.0°F

Additional Functions:

• Non-Contact Voltage (NCV) Detection
• Live Line / Neutral Line Identification
• Data Hold
• LowZ Function
• Phase Function
• Diode Test
• Continuity Test
• High Voltage Prompt Warning
• Backlight Display
• Flashlight
• Input LED Indication
• Low Battery Indication

Power Supply:

• 3 × LR03 AAA Batteries

Packaging:

• Plastic Box

In the Box

• 1 × TOTAL Digital Multimeter
• 3 × AAA Batteries
• 1 × Protective Storage Box
